100kW Solar Power System – Commercial Solar Energy Solution

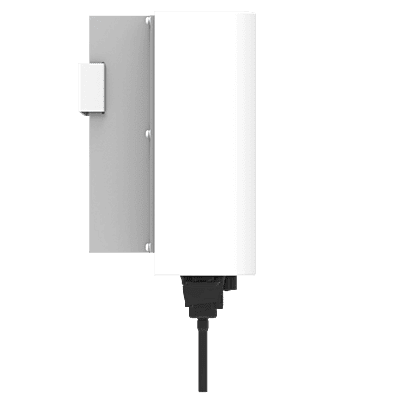

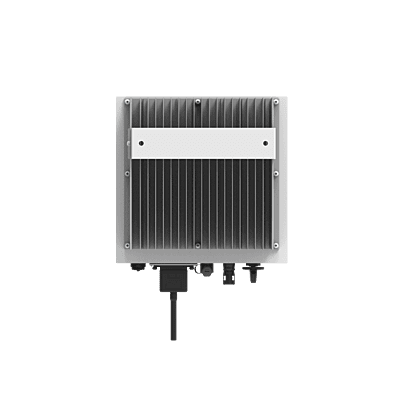

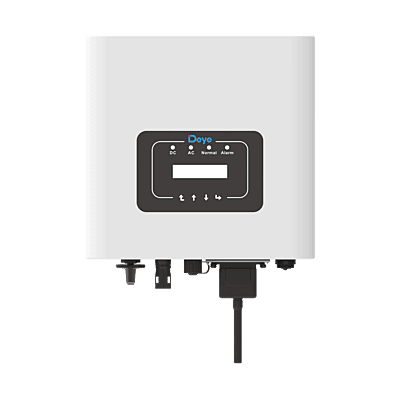

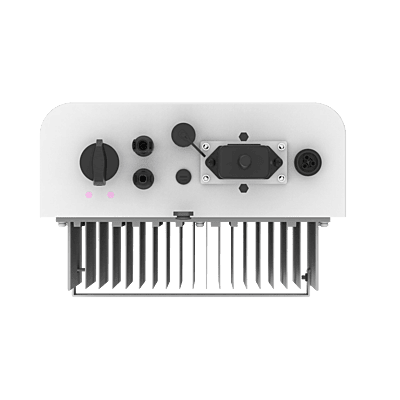

Inverter

• System Rating -- 100kVA – 3 Phase

• Max. DC Power -- 150kW

• Max. DC Voltage/Nominal DC Voltage -- 1000V

• MPPT Voltage Range -- 250V – 950V

• Full Load Voltage Range -- 500V – 800V

• Normal DC Voltage -- 620V

• Min./Start DC Voltage -- 200V – 250V

• No. of MPP Trackers -- 6

• Strings as per MPP Tracker -- 4

• Max. Input Current per MPP Tracker -- 40A

• Normal AC Output Power -- 80kW

• Max. AC Output Power -- 88kW

• Normal AC Voltage -- 400V

• AC Voltage Range -- 400V ± 20%

• Normal AC Grid Frequency -- 50/60Hz

• AC Grid Frequency Range -- 50/60Hz (± 5Hz)

• Rated Output Current -- 100A

• Max. Output Current -- 110A

• THDI -- <3%

• AC Connection -- 3W+N+PE / 3W+PE

• Technology -- Transformerless

• Maximum Efficiency -- 98.6%

• Euro-eta -- 98.2%

• All-Pole Fault Current -- Yes

• Ground Fault Monitoring -- Yes

• Operating Temperature -- -25°C to +60°C

• Noise Emission -- <60dB

• Protection Rating -- IP65

• LCD Display -- Yes

• Cooling Concept -- Fans

• Interfaces -- RS485 / Wi-Fi

• Dimension (LxDxW) -- 838x568x323 mm

• Weight -- 81 kg

• Warranty -- 10 Years
