10A DC-DC Buck Converter Step-Down Module – Adjustable Constant Voltage Power Supply
Price:
Rs.449.00 Rs.799.00 (44% Off)
- Power -- 300 W
- Material -- Epoxy
- Current -- Constant current range: 0.2–10A (adjustable)
- Model -- XL4016 DC/CC
- Output Voltage --
- (1) DC 0.8–28V continuously adjustable
- (2) Fixed output: Choose between 0.8V–28V
Please Call/What’s App @9667569326 for Bulk/Customized Order And Get Up to 60% Off
Choose Quantity:
Share:
Product Information
Product Details

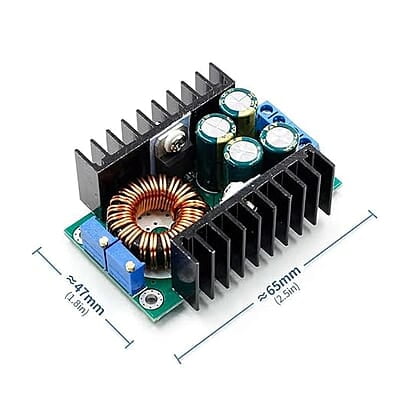

- Input voltage: 7-40V Output voltage: 1.2-35V (continuously adjustable) Output Current: 8A (power tube temperature exceeds 65°C please add cooling fan) Output Power: Maximum power is about 300W (power tube temperature exceeds 65°C please add cooling fan) Size: Approx. 2.55*1.88*0.94inch / 6.5*4.8*2.4cm(Length*width*thickness).
- Non-isolated step-down constant current, constant voltage module (CC CV) charging module

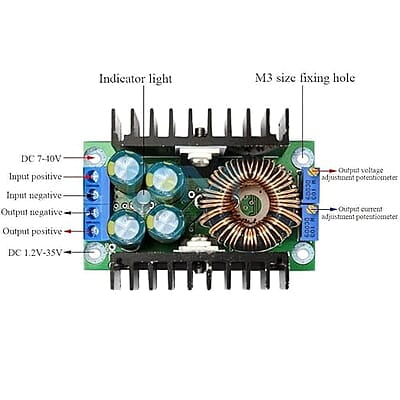

- Output Power: Maximum power is about 300W Potentiometer adjustment direction: clockwise (increase) , counterclockwise (decrease), the potentiometer(CV) closed to the input voltage is used to regulate voltage, the potentiometer(CC) closed to output voltage is used to regulate current (CC)
- 4)output socket can be customized as per need.
- No-load current: Typical 20mA (24V switch 12V) Load regulation: ± 1% ( constant ) Voltage regulation: ± 1%
- 1. Determine the operating current and maximum operating voltage at which you need to drive the LEDs; 2. Adjust the constant voltage positioner and adjust the output voltage to about 5V.
- 3. Use the multimeter 10A current block to measure the output short-circuit current, and adjust the constant current potentiometer to make the output current reach the predetermined LED operating current; 4. Adjust the constant voltage position device to make the output voltage reach the maximum working voltage of the LED
